Uni-T-Fence
Uni-T-Fence
Note: All dimensions are approximate
The Uni-T-Fence is a heavy duty aluminum extrusion up-grade fence for the Delta Uni-fence Table Saw System. The extruded square design allows you to attach or even build many different types of jigs and fixtures. Comes in 36" and 43" lengths, each sold separately. Delta Uni Fence is not included.

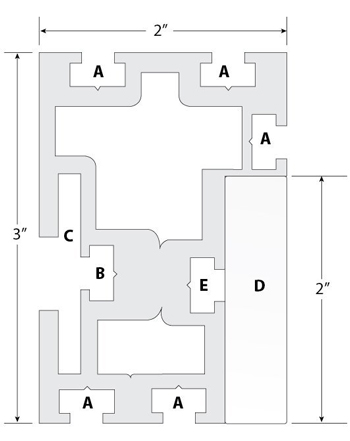

Uni-T-Fence Anatomy
Width=
2" (Doesn't require fence scale adjustment and fence can be swapped in
and out with original) UHMW Fence Face Opening (D) is exactly 1/2" deep
which allows the use of any 1/2" stock (UHMW, plywood or hardwood) to be used as
a temporary fence face (burying dado blade in the fence)
"A" T-Slots
The "A" t-slots are for mounting fence accessories like board buddies,
featherboards & shop made jigs. The "A" t-slots take a standard 1/4" hex head
bolt or 1/4" t-bolt.
"B" T-Slots
The "B" t-slot is used to mount the Uni-T-Fence to to other table saw or machine
fences. The center line of the "B" slot is 1-3/16" from the bottom of the
Uni-T- Fence and takes a 1/4" hex head nut or bolt head.
"C" T-Slot
The "C" t-slot is used to mount the Uni-T-Fence to the standard Delta® Unifence
Guide. The slot is 5/16" wide x 1-1/2" high
"D" UHMW Fence Face
The UHMW fence face is pre-drilled and mounted to the fence. We use UHMW for the
following characteristics:
- The highest abrasion resistance
- Outstanding impact strength even at low temperatures
- Excellent sliding material due to low coefficient of friction
- Self-lubricating
- Easily machined with common woodworking tools
"E" T- Slot
The "E" t-slot on the side is deeper than standard to take 1/4" hex nuts and is
used to mount sacrificial fences.
