Dust Collection

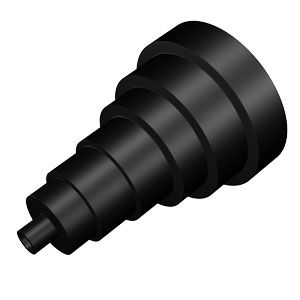

The Modular Step Fitting for dust collection actually pulls apart to reveal 4 separate fittings! The end is 4" which allows a standard 4" hose to be easily attached. Each of the fittings have two different I.D.'s and two different O.D.'s. This gives you a total of 8 fittings in one. The three smaller sections are slightly tapered on each end and the largest section is straight on both ends. The taper ends on the 3 smaller section give you more flexibility for fitting those odd sized power tool dust ports.

Features:

• Pulls apart to reveal 4 different fittings!
• Each fitting has two different outside diameters and two different inside diameters
• Neatly stack together when not in use
• 3 of the fittings are tapered while the largest fitting is straight (non-tapered)
• Ideal for machinery and small power tools...

The 2½” to ¾” Rubber adapter large end will fit in a 2-1/2” shop vacuum hose. A flexible construction allows easy connection to any of your power tools. Simply cut it to the size needed for the proper I.D. and O.D. fitting. Hose clamps are required.

Features:

• O.D. sizes: 2-1/2", 2", 1-1/2", 1-1/4", and 1"
• I.D. sizes are 1/4" less than the O.D. dimensions
• Large end will fit a 2-1/2" shop vacuum hose.
• Flexible construction allows easy connection to any of your power tools.
• Hose clamps are required - Sold separately.

6” to 1” adapter is a six step down adapter for a variety of different types of hookups. The step down sizes from the 6" to 1" adapter are 5”, 4”, 3”, 2½”, 2” and 1”. The adapter may be cut to fit your particular needs. Hose clamps are required for proper connection.

Features:

• Six step down 6” to 1” adapter
• The adapter may be cut to fit your particular needs
• Step down sizes from 6" to 1" are 5”, 4”, 3”, 2½”, 2” and 1”
• Hose clamps are required - Sold separately.

4” to 1” adapter is tapered from the 4” O.D. to the 1” O.D. Cut the adapter at the desired diameter to fit to your machine port or smaller I.D. hose. Flat portions are at sizes of: 4”, 3”, 2-1/2” and 1” for hose to hose splices. Hose clamps are required.

Features:

• 4" to 1" Reducer
• Tapered from the 4” O.D. to the 1” O.D.
• Cut the adapter at the desired diameter to fit to your machine port or smaller I.D. hose
• Sturdy ABS plastic construction
• Hose clamps are required - Sold separately.

The 4" to 1" rubber adapter has the exact same dimensions as the standard plastic adapter. The difference is that this adapter is rubber which gives you the "flexibility" to adapt it much easier than plastic. You can use the adapter in its full size or you may cut it at the needed spot for just the right fit. Measured by the inside diameters (I.D.) at both ends.

Features:

• 4" to 1" Reducer
• Flexible, rubber construction
• Fits most standard 4" ports
• Tapered from the 4” O.D. to the 1” O.D.
• Cut the adapter at desired diameter
• Hose clamps are required - Sold separately.

This is one of those fittings that woodworkers have wondered, why don't they make a fitting that goes directly from my 4" hose into my Shop Vac? Well here it is, an enlarger that accepts a 4" hose on one end, and the other end plugs directly into a standard 2-1/4" Shop Vac

Features:

• Made of flexible plastic.
• Accepts 4" hose on one end
• The other end plugs directly into a standard 2-1/4" Shop Vac opening.
• A hose clamp is required on the 4" end for proper connection - Sold separately.

Tired of twisted hose when trying to plug into one or more of your shop machines? If so, then this is the perfect adapter for you. The 360° rotating adapter rotates with your hose as you make any adjustments or move to other machines. The adapter screws into most standard 2-1/2" vacuum hoses making it perfect for most Shop Vacs®. This also means that you do not need any hose clamps to secure the adapter.

Features:

• Rotates 360° with your hose as you make any adjustments or move to other machines
• Screws into most standard 2-1/2" vacuum hoses
• perfect for most Shop Vacs
• No need for any hose clamps when securing the adapter

The perfect adaptor for attaching a standard 2-1/2" hose to most any standard 2-1/2" port like those that are found on many workshop vacuums.

Features:

• Sturdy ABS plastic construction
• Color of fitting may vary from image(s) shown
• No hose clamps are required.
• 2-1/8" I.D.
• 2-9/32" Taper up to 2-21/64" O.D.

Note:Threaded fittings can fit either left or right threaded hoses. (Even if the hose is opposite thread of fitting, the hose will stretch over threads for a secure fit.)

The 4" Screw End Adaptor allows you to attach a 4" hose to it by just screwing the hose on and will fit into most tapered openings.

Features:

• Use for 4" Dust Collection Hose
• Will fit most tapered openings
• 3-23/64" I.D.
• 3-17/32" Taper up to 3-49/64" O.D.

Note:Threaded fittings can fit either left or right threaded hoses. (Even if the hose is opposite thread of fitting, the hose will stretch over threads for a secure fit.)

This 6" X 4" Y adapter has a 6" I.D. on the large inlet side and 3-15/16" O.D.'s on the two Y inlets. This adapter will adapt a single 6" O.D. pipe or connection to two 4" connections for 4" dust collection hose.

Features:

• 6" I.D. on the large inlet side and 3-15/16" O.D.'s on the two Y inlets.
• Will adapt a single 6" O.D. pipe to two 4" dust collection hose

4-1/2" To 4" Dust Collection Hose adapter is used to connect your dust collection line to your standard 4" dust collection hose. Hose clamps are required for this type of connection.

Features:

• 4-1/2" To 3-7/8" Dust Collection Hose Adaptor
• Appx. OD on small end 3"-7/8" x OD on large end 4"-1/2".
• Please check o.d size of PVC to make sure fitting will work
• Used to connect your dust collection line to your 4" dust collection hose.
• Hose clamps are required - Sold separately.

This unique Offset adapter lets you rotate the adapter while setting it to your system in order to set the line out in just the perfect position. With the Offset adapter you can now clear obstacles like wall studs or other items with out having to move fixed dust collection components.

Features:

• 4" to 2-1/4" Adaptor
• Lets you rotate the adaptor while setting it to your system in order to set the line out in just the perfect position
• Clear obstacles like wall studs or other items with out having to move fixed dust collection components

Having difficulty connecting odd sized tool openings or European size fittings? The Rubber fittings are a perfect solution. The soft rubber fitting will stretch, flex and give allowing for a tight connection on a number of small power tools.

• Will stretch, flex & give for a tight connection
• Use to connect many different small power tools to your dust collection system
• Great for odd sized tool openings

This adapter allows you to go from common 4" DWV (drain, waste, vent) PVC pipe commonly available at home-centers to 4" dust collection fittings like elbows, T's, Y's and blast gates.

This adapter allows you to go from common 4" DWV (drain, waste, vent) PVC pipe to 4" dust collection hose. Now you can go from 4" DWV (drain, waste, vent) PVC pipe directly to 4" dust collection hose with just this one adapter. Works with all our 4" dust collection hose.
See dust hose

The UNI-VAC is the ultimate shop vacuum accessory. The super flexible rubber grips around most sizes and shapes of vacuum ports. Adapts to most table saws, routers, miter saws, sanders, and the list goes on! The innovative locking teeth allow you to secure the UNI-VAC in place. The fixed end attaches around all vacuum hoses with an outer diameter (OD) of 2-1/4” such as RIGID® Hose. Another great innovation, designed by a cabinet maker!

Features:

• Fits most sizes and shapes of vacuum ports
• Adapts to most table saws, routers, miter saws, sanders, and more
• Works great with tools that have unusual port holes

Includes:

• 1 ea. UNI-VAC Universal Vacuum Adapter
