Savannah

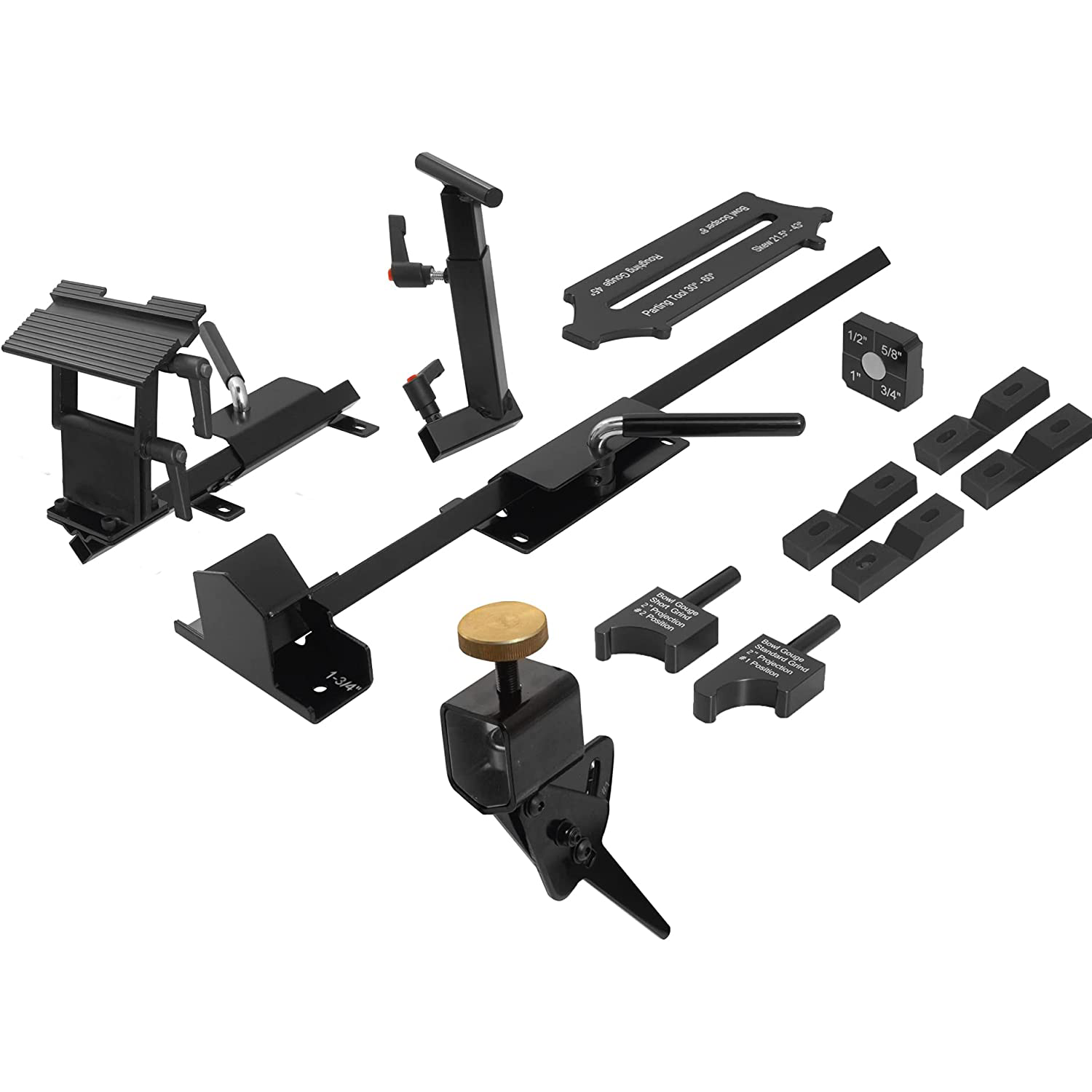

Pro-Grind Sharpening System

harpen chisels, gouges, bowl gouges, spindle gouges, carving tools, wood turning scrapers, parting tools, block plane irons and more with the PRO GRIND Sharpening System! With 3 primary methods of sharpening, you’ll be able to precisely hone each tool to your exacting specifications regardless of the tool you are sharpening. The PRO GRIND Sharpening System includes a vast collection of unique setup tools, jigs and accessories that most sharpening systems force you to purchase separately The included and versatile Multi-Grind Jig will correctly shape the edge on bowl gouges, side grinds (aka Ellsworth grind, Liam O’Neil grind/Irish grind) or fingernail grinds for spindle work and detailing. Not only will it correctly shape your tools, you will also be able to repeat the process to produce consistent results every time. The Multi-Grind Jig is designed to be used with the included Multi-Grind arm on the PRO GRIND Sharpening System and will accept tools up to 1.125” in diameter. The PRO GRIND Tool Rest Bar attachment offers you the best possible way to achieve a precise edge to your bevels without taking of too much material off of your tool. After all, we need our tools to last a long time, so why would you want to take off to much at a time?

The Tool Rest Bar is ideal for sharpening curved, even bevel edges that are typically used on spindle and roughing gouges. The large, 3” x 5” slotted platform is the ideal way to sharpen flat edged tools like wood turning skews, chisels and hand plane irons. The platform has a slot milled horizontally through it so it can accept the included tool holder. The tool holder is designed to keep your tools at the correct angle while being able to slide side to side during the sharpening process. The PRO GRIND Sharpening System also comes with a number of setup jigs and accessories to help in the setup process to sharpen your tools to the proper and repeatable angles. From the built-in projection gauge on the Multi-Grind arm to the Magnetic Micro Bevel setup block you’ll be able to achieve consistent repeatable angles and produce excellent results each and every time you use the PRO GRIND Sharpening Jig system.

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
7575 Pro-Grind Sharpening System $179.99

Turning Tool Sharpening Jig

Turning Tool Sharpening Jig
Turning Tool Sharpening Jig Turning Tool Sharpening Jig Turning Tool Sharpening Jig
Turning Tool Sharpening Jig Turning Tool Sharpening Jig Turning Tool Sharpening Jig

This set includes everything you need to your lathe turning tools. Achieve the perfect edge on your blades and chisels with this complete 4 PC set.

The Adjustable "V" Attachment can be set to accept lathe turning tools up to 27" in length. The attachment cradles the tool handle giving you a stable point in which to easily sharpen your tools.

The Grinding Platform is adjustable and can be used to sharpen most any type of chisel

The Gouge Jig Attachment allows you to sharpen your gouges using a "rolling" motion. This makes achieving the perfect cutting edge much easier than most conventional sharpening jigs.

The Skew JIg Attachment sharpens skew tools on both sides with this unique jig setup. Once one side of the skew is complete, simply flip the skew over into the other "v" cup and sharpen the other side.

This 4 Piece Set Includes:

  • 1 ea. Adjustable "V" attachment
  • 1 ea. Grinding platform
  • 1 ea. Gouge jig attachment
  • 1 ea. Skew jig attachment

Note: Turning Tool and Grinder NOT INCLUDED.

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
7393 Turning Tool Sharpening Jig $129.99

Precision Sharpening System

Precision Sharpening System

Achieve the perfect edge on your blades and chisels with this complete 4 PC set. This set includes everything you need to grind perfect edges: Adjustable “V” groove to accommodate chisels up to 27” long, Grinding platform used for general purpose grinding, Fingernail jig which is ideal for quick grinding of fingernail profiles, and the Skew Grinding attachment which positions on the end of the “V” pocket jig to assist you in grinding precision bevels on any skew chisel.

Note: Turning Tool and Grinder NOT INCLUDED.

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
3368 Precision Sharpening System $129.99

OneWay
Wolverine Grinding Jig

Wolverine Grinding Jig - 2291
Note: Turning Tool and Grinder NOT INCLUDED.

The WOLVERINE Grinding Jig is the CORE component of the ONEWAY WOLVERINE line of grinding products. Producing razor sharp tools and finely finished bevels has moved from an art into a science. Owning the WOLVERINE Grinding Jig will ultimately save you time, frustration and money. You can now grind your tools properly the first time. Uniform cutting edges and single facet bevels will give you safer, more predictable tools. Because you are grinding your tools less, both your wheels and tools will last longer. The Grinding Jig comes with two bases - grinders come with two wheels, so we include two bases. By mounting one under each wheel, grinding operations can be rapidly performed on either side of your grinder without having to re-position bases. Bases are equipped with cam-lock clamping that makes the removal and installation of all attachments possible in 10 seconds or less. The cam forces all attachments rigidly into the base which eliminates all play. This Grinding Jig also comes equipped with an adjustable angle sturdy

platform that has a 3 x 5 inch working area. This platform can be used on both the left and right hand sides of the grinder. An adjustable speed handle makes adjustments quick and easy and ensures that the handle is never in the way. The Wolverine System was designed to replace conventional light duty toolrests with heavy duty universal grinding and dressing jigs for low cost grinders. Properly installed, with balanced wheels, this system will outperform grinders costing in excess of $500.00.

NOTE: When fitted to heavy duty grinders with cast iron tool rests and guards, some modification to these rests and guards may be necessary. If in doubt inquire before purchase.

Why is owning a grinding fixture so important?
More consistent grinding will give more consistent cutting, which will lead to fewer digs and better results.

Our Grinding Jig can be easily used to
sharpen the following tools:

  • GOUGES are ground in the Vee-Arm supplied with the WOLVERINE Grinding Jig. The Vee-Arm slides in the base and holds your bevel angle constant. It is long enough to hold any standard tool. Adjusting the arm is as easy as unlocking the clamping lever, moving the arm in or out, and re-clamping the lever. Once the proper angle is determined, turn on your grinder. Place the tool in the vee-pocket, rest the cutting edge directly on the wheel, and roll the tool. It's that simple. A popular shape to a bowl gouge is an "Irish" or "Side" grind. This type of grind is best achieved using the Vari-Grind Attachment.
  • CHISELS Carpenter chisels up to 1-1/4" wide can be sharpened using the Wolverine's Vee-Arm. The arm is adjusted to set the bevel, and the chisel can be ground with small sideways motions and light cutting pressure. Three or four strokes on a strop will generate a razor sharp edge.
  • SCRAPERS The Wolverine Grinding Jig comes with a 3 x 5 inch adjustable platform which allows even large scrapers to be ground with ease.
  • PARTING TOOLS Parting tools are sharpened using the platform. Laying it flat on its side on the platform gives a slight hollow grind which is very desirable for clean parting.
  • SKEWS The Wolverine's Vee arm can be used to sharpen skews, but a far superior method is ONEWAY's Skew Grinding Attachment.
  • CARVING TOOLS With a finely dressed 80 or 120 grit wheel, even very small carving tools can be superbly ground using the standard Vee-Arm.
California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
7703 Wolverine Grinding Jig - 2291 $94.99

OneWay
Wolverine Skew Grinding Attachment

Oneway Wolverine Skew Grinding Attachment

The Skew Jig was designed specifically for grinding Skews. It is quick and easy to use, and will give you an amazingly flat bevel. One reason that the skew leaves such an incredible finish on work pieces is due to its very thin edge which leaves naturally cleaner cuts. This creates a problem with sharpening the skew as this thin edge will easily fold over during grinding. ONEWAY's Skew Grinding Attachment minimizes this problem by allowing the skew to be mechanically held. The unique offset handle position actually reduces the hollow grind generated and leaves a stronger more predictable tool.

Problem Until now, we have been using the Wolverine Grinding Jig's Vee-Arm to grind skews. Straight from the pocket, a hollow grind can be produced at any angle you wish to achieve, or the rounded toe used by some turners. However, two problems occur using the Vee-Arm:

  • The bevel of the skew should be flat, and this method does produce a hollow grind
  • The cutting edge and bevel are not parallel

Solution Solving the first problem seemed impossible, to get a flatter grind you need a bigger wheel, so we set out to solve the second problem. The result was the ONEWAY Skew Grinding attachment. Very simply the jig is two pockets offset 3-1/2" to either side of center of the wheel. When the handle of the skew is placed in these pockets, the cutting edge becomes square to the wheel. But after we tried the jig something amazing happened. The bevel flattened itself out, which solves the first problem; excessive hollow grind.

How does this happen? Well, as the tool is moved side to side on the wheel, the offset position of the handle forces the tool slightly up and down the wheel. As the tool is forced up the wheel it grinds more off the back of the bevel and flattens the grind. The Skew Grinding Attachment produces a virtually flat bevel with greatly improved cutting characteristics. This fixture is a highly recommended option with our Wolverine Grinding System.

SKEW SHAPE: The skew, in order to cut effectively, should be ground with an angle of 70 degrees to 80 degrees looking from the top, and an included angle of 20 degrees to 35 degrees, depending on the wood to be cut and personal preference. The surfaces should be flat, not convex or concave. In an attempt to obtain a flat surface, some turners will grind the skew on the side of the grinding wheel, but this method is not recommended as some roundness will occur and for safety reasons.

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
7739 Oneway Wolverine Skew Grinding Attachment $32.99

OneWay
Vari-Grind Attachment for 1/8" to 5/8" Diameter Tools

Vari-Grind Attachment for 1/8" to 5/8" Diameter Tools

The Wolverine Original Vari-Grind Jig will properly shape and maintain the edge on standard bowl gouge, the modern side grind shape and the traditional fingernail shape. These shapes however are difficult both to grind and maintain. OneWay has spent a considerable amount of time and effort to develop a system which will consistently produce sharp, repeatable geometries on turning tools for the woodturner. This single attachment will produce every shape from the first mentioned fingernail grind right up to the side grind and everything in between to suit your needs.

Note: This Jig is designed to be used with the Wolverine Grinding Jig. This attachment can be used with it by creating a suitable rest position for the fixture. Turning tool not included

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
7704 Vari-Grind Attachment - 2480 $57.99

OneWay
Vari-Grind 2 with Base

Vari-Grind 2 with Base - 3920

The Vari-Grind 2 features all the benefits of the Original Vari-Grind but increases ease of use, and safety. The Vari-Grind 2 restrains both side-to-side motion of the tool, as well as the pivot point so that the tool cannot slip in either direction.

The patented pivot point allows the tool to move in true cylindrical motion about the adjusting rod which produces a true fingernail and side grind at any bevel angle. The Vari-Grind 2 is the only restrained grinding jig that perform in this way. With the Vari-Grind 2 sharpening is virtually fool proof.

Designed with a bearing based clamp fitted with a nylon cap, the Vari-Grind 2 cannot damage the tool and can be easily replaced if it ever wears out.

Instructional DVD included.

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
7705 Vari-Grind 2 with Base - 3920 $107.99

Sharpening Jig

Sharpening Jig
Sharpening Jig Sharpening Jig Sharpening Jig Sharpening Jig
Sharpening Jig Sharpening Jig Sharpening Jig Sharpening Jig

Get More from Your Sharpening Jig

Made from aluminum and completely adjustable, the Tool Rest Sharpening Jig has more features than similar systems that are three times as much. Not only can you adjust the platform, you can also move the jig in and out on the Mounting Track Base. Most others have a base that is fixed and completely non-adjustable. Some of those "high end" jigs don't have a miter slide guide for keeping your tools at the proper angle and for making the sharpening process easier. Why not get more bang for your buck and purchase the Peachtree Tool Rest Sharpening Jig System!

  • NOW with Internal Lock Washers for even better platform stability!
  • Made from aluminum
  • Completely adjustable
  • Adjustable base in and out
  • Adjustable the support up, down and angles
  • Adjustable platform angles
  • Miter slide guide for keeping chisel at proper angle
  • Miter slide tool holder
  • More features than more expensive systems
  • More precise angles

Note: Chisel and grinder not included

Ratcheting Handles Make your adjustments and conveniently position the ratcheting handles out of the way so you are not bumping them while you sharpen.

Adjust up, down and lean forward or back Loosen the ratchet handles to adjust up and down and tilt the platform. Once your positions are found, secure both handles, then slightly loosen the bottom handle and lean the top half exactly where you would like for it to be.

Slide jig front to back loosen the base knob and you can adjust the whole unit by sliding it from the back to the front to achieve the perfect angle for the exact tool you will be sharpening.

Allows for more precise angles Having the ability to "wrap" the platform around the 1" grinding wheel is important when trying to achieve just the right angle for your tools to be sharpened. Some sharpening jigs don't have this feature and many of us simple "cut" out a slot on the platform. The Tool Rest Sharpening Jig has the slot milled right into the table so you don't run into that "road block" when setting up the angle for your next sharpening job.

Miter Slide Tool Holder This unique device keeps your tool flat against the platform to help produce excellent results. Once your tool is secure and the platform and jig are set to the correct spot and correct angle, simple place the tool holder in the slot and work the tool side to side across the face of the grinding stone. This method also allows you to set your angle in such a way so you only take off just the right amount of material and nothing more.

Sharpen turning tools, chisels, plane irons and a whole lot more! The Tool Rest Sharpening Jig is an accessory that should be in most every work shop where sharp tools are needed. It not only makes the sharpening process easier, it makes it quicker. With the same features plus quite a few more than the "high end" system, this jig brings you tremendous value in comparison to the name brand versions. Not only is this jig a great value, it can also handle most any type of tool that needs to be sharpened. Sharpen turning tools, chisels, plane irons and a whole lot more with the Tool Rest Sharpening Jig from Peachtree Woodworking Supply!

Mounting Track Base Add-On
Make the Tool Rest Sharpening Jig Even More Versatile!

Sometimes we need just a little more to make the ideal jig system even better. The Mounting Track Base is the exact same Mounting Track Base that comes with the jig. This extra base gives you the opportunity to now have two Mounting Track Base mounted to your bench grinder bench top so you can either switch back and forth from wheel to wheel with one jig, or you can use two jigs (Tool Rest Sharpening Jigs sold separately) set up on each wheel at the same time. This makes the sharpening process much quicker and easier.

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
3342 Sharpening Jig $34.99
3355 Mounting Track Base Add-On
for the Tool Rest Sharpening Jig
$10.99
