Router Accessories Accessories

Premium Phenolic Router Plate with Rings

The premium 9 ¼” x 11 ¾” phenolic router plate is 3/8" thick and features 5 easy to install insert locking rings (3/8", 1", 1-7/8", and 2-5/8" openings, as well as one guide bushing ring), a locking ring wrench, hold down screws and leveling screws. Router plate center opening is 3-13/16". The plate is etched on the bottom with guide marks for aligning most any brand of router. Center guide markings (1/8" increments) helpful for aligning fence. Universal fit plate will work with most woodworking industry routers. Some drilling may be required depending on the router you own.

Premium Phenolic Router Plate with Rings Includes:

• 5 ea. Insert locking rings
• 1 ea. locking ring wrench
• 4 ea. Hold down screws
• 10 ea. Leveling screws

Ring Specifications:

• 1 ea. 3/8" Insert Locking Ring
• 1 ea. 1" Insert Locking Ring
• 1 ea. 1-7/8" Insert Locking Ring
• 1 ea. 2-5/8" Insert Locking Ring
• 1 ea. Guide Bushing Ring

Please Note: Universal fit plate will work with most woodworking industry routers. Some drilling may be required depending on the router you own.

3/8" Thick Premium 9 ¼” x 11 ¾” Phenolic Router Plate

A premium 9 ¼” x 11 ¾” phenolic router plate is included and features 5 easy to install insert locking rings (3/8", 1", 1-7/8", and 2-5/8" openings, as well as one guide bushing ring), a locking ring wrench, hold down screws and leveling screws. Center guide markings (1/8" increments) are helpful for aligning a fence.

Hold Down Screws and Leveling Screws Included

4 ea. Hold down screws, and 10 ea. Leveling screws are included.

Mount the Router Table Top to any Stand as Needed

You can mount the router table top to any stand as needed. Typically the table top is mounted to a steel stand with wood screws. It can however be adapted to shop made wood stands if so desired. Mounting hardware is NOT included. The plate is etched on the bottom with guide marks for aligning most any brand of router.

Please Note: Universal fit plate will work with most woodworking industry routers. Some drilling may be required depending on the router you own.

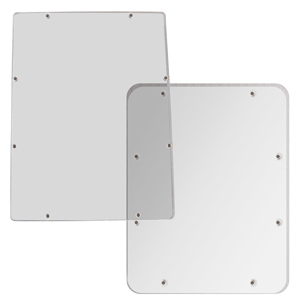

Premium Phenolic Router Plate

Our Premium router plate is available in the popular size: 9-1/4" x 11-3/4", which is precision ground and manufactured with some great features! The plate is pre-drilled to fit our cam action corner adjusters. The Cam Action Corner adjustment eliminates side to side play or movement in your router table plate when placed into your router table. The adjusters work by simply turning the offset cam clockwise until it puts firm pressure on the inner side walls of the router table. The Premium Router Plate also features removable rings, in which the outer most ring is secured with screws and rubber grommets to ensure the ring is precisely leveled. The plate also comes with a standard starter pin for making free hand work easier. The starter pin allows you to make cuts like panels for cabinets, molding, and miters.

Hole Opening Sizes:

• 3-7/8" - for large raised panel cutters
  (plate opening with no rings inserted)
• 2-5/8" - great for medium size cutters
  (clear ring)
• 1-1/4" - with with pre-milled offset for Porter® Cable style bushings or smaller sized cutters (red ring)

Includes:

• 3 ea. Corner Cam Adjusters
• 1 ea. Starting Pin
• 2 ea. Hex Key Wrenches
• 4 ea. Leveling Screws
• 4 ea. Magnets

Precision Router Table Plate with Level-Loc Rings

This rugged 3/8"-thick phenolic insert plate is designed to provide a solid, flat, and perfectly level mounting surface for your router. Measuring 91/4" x 113/4", it will accept almost any router (even large, heavy models) with ease. The plate is equipped with our Level-Loc Reducing Rings that allow you to easily change the size of the opening around the router bit. These rings simply twist into place using an included ring wrench to lock in level and flush with the plate surface. The plate comes with three Level-Loc Rings: 1", 13/16" (for use with universal-style guide bushings), and 25/8".

Features:

• Measures 91/4" x 113/4"
• 3/8"-thick phenolic insert plate
• Comes without any predrilled mounting holes
• Alignment marks make it easy to center and mount on almost any router
• Level-Loc Reducing Rings
• undrilled
• pre-drilled for Triton
• pre-drilled for Porter-Cable and Bosch

Undrilled and Predrilled Plates

The Precision Router Table Insert Plate is available in three versions, so you can choose the one that best suits your needs.

Undrilled (4857):

This plate comes without any predrilled mounting holes. Alignment marks engraved on the underside make it easy to center and mount any router using the detailed instructions that are included with the plate.

Predrilled for Triton (4855):

This plate comes with predrilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers. With modification, the hole pattern also works with the Porter-Cable 7500 Series.

Predrilled for Porter-Cable and Bosch (4856):

This plate comes with predrilled holes and mounting hardware to fit the Porter-Cable 690 and 890 Series, along with the Bosch 1617.

Level Lock Rings 5 Piece Set

This five-piece set of Level-Loc Reducing Rings fits the Kreg Precision Router Table Insert Plate, as well as Precision Router Table Lift, allowing you to customize the size of the opening around the bit. The set includes rings with 3/4", 13/8", 15/8", and 21/8" openings, plus one "blank" ring that you can use to create your own custom-sized or zero-clearance ring. The set comes with a molded storage tray that has slots to hold all five Level-Loc Reducing Rings, plus slots to hold the three rings that come with the Precision Router Table Insert Plate or Precision Router Table Lift. Each slot is marked with the opening size, making it easy to keep the rings organized.

Features:

• 3/4", 13/8", 15/8", and 21/8" openings
• Plus one "blank" ring to create custom ring
• Includes molded storage tray with slots
• Slots are marked with opening size

Includes:

• 5 ea. Insert Rings: 3/4", 13/8", 15/8", and 21/8" (19mm, 35mm, 41mm, 54mm) plus one "blank" ring
