Brake Cartridge

SawStop Protection Starts Here!

The cartridges are compatible with all standard 10" blades and are also compatible with all woods and other non-conductive materials. The SawStop Brake Cartridge is available for standard saw blades as well as dado blades. Owners of the older SawStop saws with the 15 pin connector must contact SawStop for more information.

Newer Saws (Blue Tint Cartridge)

• 10502 - Standard Blade Cartridge: Compatible with all standard 10" Blades.
• 10503 - Dado Blade Cartridge: Compatible with all dado sets up to 13/16" thick.

Note: Before ordering, check your cartridge to see if it's clear or blue tinted to insure that you get your correct cartridge for your saw.

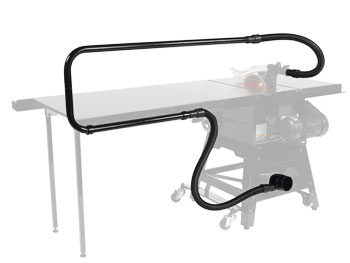

Overarm Dust Collection

Dust Collection Up and Out of the way

Remove Dust Up and Out Of the way! This system is compatible with all SawStop saws and fits all SawStop T-Glide rail systemsh. Connects directly to SawStop’s dust collection blade guard system. Custom Y-Port unites above and below-table dust collection into 4" port.

• Compatible with all SawStop saws.
• Fits all SawStop rail and table lengths.
• Connects directly to SawStop’s dust collection blade guard.
• Custom Y-Port unites above and below-table dust collection into one 4" port

Note:

• (For 1.75HP Professional Cabinet Saw: Requires Dust Collection Blade Guard)


• (For Contractor Saw: Requires Dust Collection Panel and Dust Collection Blade Guard. Not Compatible with 30” SFA Fence/Rail)


• (Requires dust collection blade guard TSG-DC - PLU# 10496 shown below. Not compatible with Contractor Saw 30" rail kit CNS-SFA. )

Dust Collector Blade Guard

Collect abovetable dust. Independent lateral slides minimize blade exposure. Low profile to allow for cuts as narrow as 3/4 of an inch. Attaches directly to dust collection system. Compatible with SawStop Overarm Dust Collection.

• Collect above-table dust
• Independent lateral slides minimize blade exposure
• Low profile to allow for cuts as narrow as 3/4 of an inch
• Attaches directly to customer’s dust collection system
• Compatible with SawStop Overarm Dust Collection
• Included with every cabinet saw 3HP and above

Zero Clearance

Standard Inserts for 10" Blades
Made of phenolic material that is covered on top and bottom with a low-friction, wear-resistant melamine surface.

• Precision machined from a high-quality, ultra strong phenolic core
• Positioning screws ensure a solid and precise fit in the table
• Pre-formed clearance slots for SawStop blade guard and riving knife
• Dual metal wear plates for anti-kickback pawls
• Positive locking latch allows for tool-free operation

Dado Inserts for 8" Dado Sets
Made of phenolic material that is covered on top and bottom with a low-friction, wear-resistant melamine surface

• Precision machined from a high-quality, ultra strong phenolic core
• Positioning screws ensure a solid and precise fit in the table
• Positive locking latch allows for tool-free operation

PCS Integrated Mobile Base

• Fully-welded 1/4" rigid steel construction
• Hard-wearing black powder coat finish
• Durable polyurethane wheels
  Two fixed-direction wheels
  Two 360° casters for easy positioning
• Easy-to-follow assembly instructions
• Ergonomic one-foot operation mechanically lifts the saw in a single motion
• Release pedal helps guide the saw down to a stationary position
• Supports entire table and requires no extension piece even for the 52" extension table
• When not engaged, the cabinet rests directly on the floor

Note: Sawstop Tablesaw Not Included

Industrial Mobile Base w/PCS Conversion Kit

• Supports saw and extension table
• No additional extension hardware required
• 1000 lb capacity
• Mobility in any direction
• Four 360° high performance casters
• No flimsy wheel brakes
• Non-marring polyurethane wheels
• When disengaged, the saw rests firmly on the ground distributing weight directly to the floor, not the wheels
• Three quick pumps of the foot pedal raises the saw
• A light press on the release safely lowers the saw
• Fully welded solid 1/4″ steel construction / black powder coat
• High performance full ball bearing casters

Note: Sawstop Tablesaw Not Included

Sliding Crosscut Table

The SawStop Sliding Crosscut Table is engineered for your SawStop Contractor Saw, Professional Cabinet Saw or the Industrial Cabinet Saw. The table is sized to fit, with pre-drilled mounting holes. TheT-6 aircraft-grade aluminum is beautifully anodized to complement your saw.
More important, the Sliding Crosscut Table is engineered to give you easy, repeatable, accurate results. Cut with Confidence.

• Fits all existing SawStop saws & is beautifully finished to match
• Full 48” rip/crosscut capacity, even with the fence installed
• Can be mounted flush, preserving a 36” rip/crosscut capacity while maximizing walk around space in front of the saw
• Precise, oversize gauge allows measurements up to 60 degrees, and a single knob twist frees the fence for angle adjustments
• Extruded aluminum fence is beautifully anodized gray to complement the SawStop table, and elegant flip-stops offer easy measurement and control
