This dust collector separator increases the efficiency and capacity of standard
dust collection systems. Designed to fit securely on top of a standard 30-gallon
metal trash can, this molded ABS fitting is engineered to use cyclonic action to
drop out larger particles from the dust flow. The fitting features molded inlets
and outlets which can be easily connected to standard systems using 4” flexible
hose . You will be amazed at how well it works!!
The Dust Collection separator comes in two sizes:
Item# 399 - 30 gallon can size (shown in image)

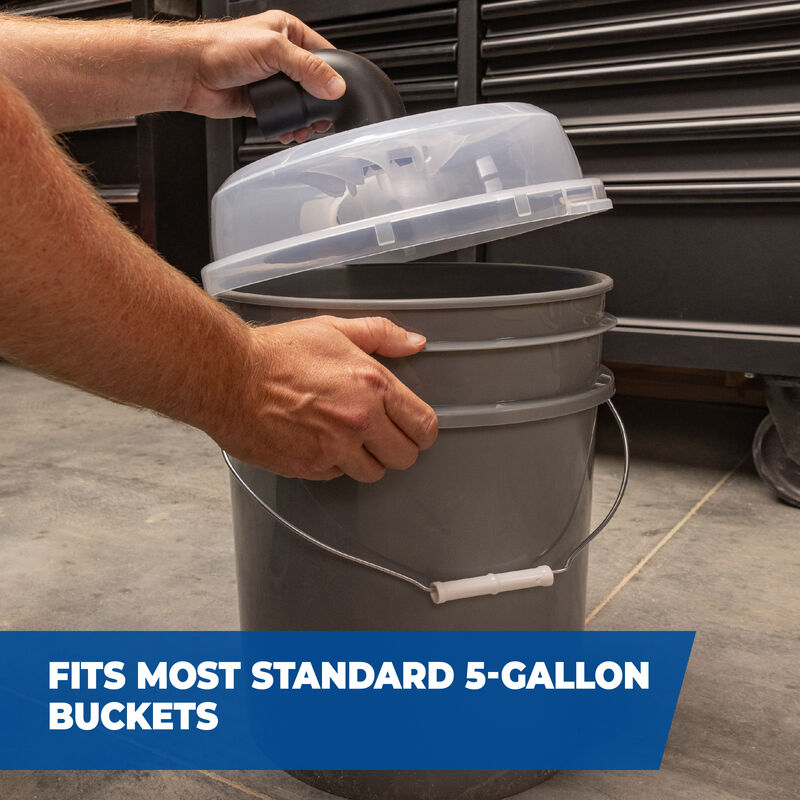

Item# 400 - 5 gallon size.
California Residents: WARNING: Cancer and Reproductive Harm
- www.P65Warnings.ca.gov.
Item#
Description
Price
Quantity
399
30 gallon dust separator lid (fits 4" hose)
$32.99
400
5 gallon dust separator lid (fits 2-1/2"
hose)
$23.99
Cyclone Dust
Separator Lid
The Cyclone Separator with a handle works by drawing the air downward as opposed
to horizontally, causing the large debris to settle at the bottom of the can.
The separator also has port holes that protrude out to provide an easy hookup
for your dust collection hose. The handle on the cyclone lid makes cleaning out
the can a snap, simply turn off your dust collector and lift the lid straight up
and off of the can for easy removal of the dust and debris.
The Dust Collection separator comes in two sizes:
Item# 401 - 30 gallon can size (shown in image)
Item# 402 - 5 gallon size.
California Residents: WARNING: Cancer and Reproductive Harm
- www.P65Warnings.ca.gov.
Item#
Description
Price
Quantity
401
30 gallon Trash Can Cyclone Lid (fits 4"
hose)
$34.99
402
5 gallon Trash Can Cyclone Lid (fits 2-1/2"
hose)
$24.99
4" Cyclone Dust Separator Kit
Basic Use Instructions
4" Cyclone Dust Separator Kit
Help protect your dust collector from unnecessary wear and tear with our unique
Dust Separator Kit. Two elbows and two couplers combine to give you in feed and
out feed points when they are installed on a barrel, box, or any container
(barrel or box not included) that you would like to capture large wood chips in.
The separator works by simply allowing the heavy wood chips to fall to the
bottom of the container, while the lighter dust particles get pulled in the out
feed port and into your dust collector. This keeps the large debris from
slamming into your dust collector’s impeller, which in turn prevents any
unnecessary damage to the unit.
›See more product details
4" Cyclone Dust Separator Kit
Help protect your dust collector from unnecessary wear and tear
with our unique Dust Separator Kit. Two elbows and two couplers
combine to give you in feed and out feed points when they are
installed on a barrel, box, or any container (barrel or box not
included) that you would like to capture large wood chips in.
The separator works by simply allowing the heavy wood chips to
fall to the bottom of the container, while the lighter dust
particles get pulled in the out feed port and into your dust
collector. This keeps the large debris from slamming into your
dust collector’s impeller, which in turn prevents any
unnecessary damage to the unit. Separating the large wood chips
also keeps your dust collector bag or container from filling up
so fast, this means you won’t have to empty it as often! The
Dust Separator Kit is perfect for use with Jointers, Planers,
Router Table units and more!
For Use with Barrels Trash Cans Buckets or Custom Built
Containers
Some workshops need large dust collection systems with large
container to trap the large debris that flows through the dust
collection lines. What about the rest of us with our home
workshops with smaller dust collection systems? The 4 inch Dust
Separator Cyclone Dust Collector Kit steps in quite nicely to
fill this void and more. The best part is that not only does it
work, you won't break the bank either!
Heavier Debris Falls while the Lighter Dust Stays on Top
The basic idea behind cyclonic dust separators is to have the
natural force of gravity pull the heavier wood debris down to
the bottom of the barrel while the lighter dust particle stay up
top and flow into your dust collector. Once setup, the 4 inch
Dust Separator Cyclone Dust Collector Kit will do this just like
any other premium cyclone system only at a fraction of the cost.
Protect Your Investment
Dust collection has become one of the most important aspects of
woodworking safety. With this, comes a bit of a cost to make
sure that we are keep dust particles at bay when we are working
with wood. When we use our dust collectors with machines like,
jointers, planers and even routers those tools tend to produce
large chips or shavings that can be very harmful to your dust
collectors impeller. The impeller is essentially what draws the
dust and debris into the collection unit and into the bag. If
large, heavy chips and debris continually hit the impeller, it
will eventually wear down and will have to be replaced. To
prevent this and to dramatically increase the lifespan of your
dust collector impeller, we strongly recommend using our 4 inch
Dust Separator Cyclone Dust Collector Kit.
Find the Right Container For What You Do...
Typically the container size you would use is dictated by the
amount of chips you normally produce when using your jointer,
router table or planer machines with your dust collector. Most
any container will work as long as it has a lid that is firmly
secured. We recommend using rigid type containers like the ones
shown here. These containers also include lids that are secured
on by a clamping system which is also recommended for optimum
results. Lids and containers are NOT included.
Set Up and Installation
Considering that to install the 4 inch Dust Separator Cyclone
Dust Collector Kit on to a container lid means that we will have
to physically cut holes into the lid, the installation may take
more than a few minutes. That being said, we have included easy
to follow instructions as well as a scale template of the exact
hole size to make transferring the pattern to the lid super
easy.
We have included the following in this kit...
2 each 4 inch top side ports
2 each 4 inch bottom side half length elbows
2 each 4 inch key secure hose clamps
1 each full color instruction
1 each template for hole cut out
1 pack of nuts and bolts mounting hardware
The Kit includes:
2 ea. 4" Ports
1 ea. 4" in feed elbow
1 ea. 4" out feed elbow
1 ea. hardware pack
2 ea. 4" turn key hose clamps
Note: Barrel Not Included
