Drilling / Boring

×

Precision Shear™ Forstner Bits

New Precision Shear™ Forstner Bits feature a double-ground, razor-sharp serrated edge that slices throughout the rotation of the bit for less splintering and chipping, producing flawless flat-bottom holes. This unique geometric design has multiple cutting edges that produce greater shearing action, allowing for faster rotational speeds and more efficient cutting. Competitive Forstner Bit designs produce small chips and dust that collect in the cutting area, increasing friction and heat, thus causing the bit to dull quickly. Those designs also create holes with rough edges that require sanding. In addition to serrated edges.

×

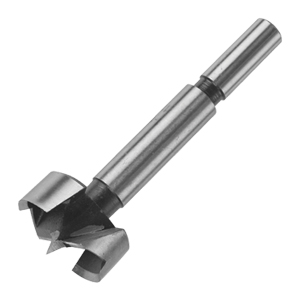

Forstner Bits

The Bosch line of Forstner bits produce consistent hole quality for a variety of precision applications. With maximum precision drilling ideal for fine woodworking, the bits are also well suited for off-center or angled hole drilling. High-quality Bosch Forstner bits provide an exceptional finish for even the most meticulous professional.

×

35mm Concealed Hinge Jig Bit

Bore Clean, Perfect Holes for Concealed Door Hinges
The 35mm Concealed Hinge Bit makes it possible to bore clean, perfect holes for concealed hinges. The bit is a direct replacement for the bit that’s included in the Kreg Concealed Hinge Jig. For clean, fast cutting, the bit features four carbide cutters—two main cutters that bore a flat-bottomed hole, and a pair of spur cutters that ensure clean hole edges free of tearout. The bit shank is sized to fit in the drill guide on the Concealed Hinge Jig, and the shank has a shoulder that perfectly positions a stop collar. While the Concealed Hinge Bit is designed for use with the Concealed Hinge Jig, it’s a great bit to use with any hand drill or drill press for boring precise 35mm holes.

Note: Stop collar not included with this bit. Sold separately with the Concealed Hinge Jig.

×

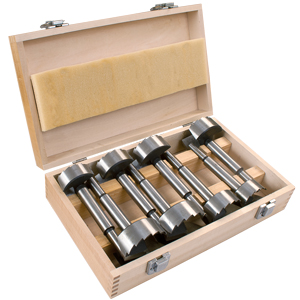

7 Piece Forstner Bit Set

Drilling flat bottom smooth holes doesn't have to be challenging. As a matter of fact, its super easy if you have the right drill bit to do so. If you've never used a forstner bit, this is the perfect set to get you started. If you are an experienced woodworker, then you already know the value of a quality, ideally sized diameter forstner bit set like this one.

With seven of the most commonly used drilling diameter forstner bits included, you'll be able to perform a wide variety of flat bottom or through hole drilling applications. Each bit is designed for use with any standard 3/8 inch of ½ inch drill chuck. The bits are milled with a hex shank for maximum torque while drilling. This makes them great for harder wood.

Each bit has a projecting center point for absolute precision when initiating the drilling process. The center point allows you to precisely position the bit before drilling ensuring the accuracy needed for your woodworking project. These bits won't "walk" or shift like standard drilling bits. Use them for carp-entry, woodworking and even craft projects. You can drill into many different materials including wood, some plastics, composite material, MDF and more!

What's in the wooden box?

The set comes in a wooden box that folds back to lay completely flat or stand vertically to view your bits. The bits are protected by the wood box but are also protected by a foam liner along with a urethane shank sleeve.The set includes: 1 ea. 1/4" Steel Forstner Bit 1 ea. 3/8" Steel Forstner Bit 1 ea. 1/2" Steel Forstner Bit 1 ea. 5/8" Steel Forstner Bit 1 ea. 3/4" Steel Forstner Bit 1 ea. 7/8" Steel Forstner Bit and 1 ea. 1" Steel Forstner Bit

Smooth Flat Bottoms

Drill smooth flat bottom holes time after time after time using our forstner drill bits! You can drill into almost any location on your workpiece including the edge when needed!

No tearing out

Our bits don't tear at your wood when drilling, these bits shear or cut the wood producing excellent results. Simply lower and raise your bit while its rotating to clear out excess buildup and a smooth drilling process.

Great for any project!

Drill through holes quickly, smoothly and almost effortlessly! Perfect for projects like elaborate coin plaques or larger projects like bird houses.

Positionable Wooden Box

The wooden box that protects your forstner bits is designed to fold back so it can stand vertically or lay down flat all the while you'll still be able to view your bits to see which one is needed next.

Hex Shanks

Each bit has a hex shank to ensure that it will provide the most torque possible depending on your drilling device.

Compatibility

Works with most battery operated hand drills and drill press machines with standard size drill chucks. Can also be used on some wood lathes with a drill chuck adapter (not included).

The 7 Piece Forstner Bit Set Includes:

Size	Max RPM
1/4"	870
3/8	870
1/2"	870
5/8"	870
3/4"	870
7/8"	870
1"	620
Double Hinged Wood Storage Case

Made from high carbon steel, these forstner bits are perfect for repeated flat bottom hole or through hole drilling. The bits can be used in battery operated hand drills, manually operated hand drills and drill press machines. Each bit is sharpened on honed right out of the box and is ready for use.

×

16 Piece Precision Shear™ Forstner Bit Set

This set contains Freud's entire line of Precision Shear™ Forstner Bits. From the 1/4" diameter to the 2-1/8" diameter these bits will drill flat bottom holes, pocket holes, or overlapping holes. Application: Drills plywood's, hardwoods, and softwoods. Use in hand held drills and drill presses.

The 16 Piece Precision Shear™ Forstner Bit Set Includes:

×

6" Forstner Bit Extender

Drilling with forstner bits to achieve a flat bottom hole or to start a deep hole turning project like on a larger vase or vessel is essentially impossible with a standard length forstner bit. To remedy this issue we have developed a heavy duty steel extension that allows you to secure a 3/8 inch shank forstner bit into the end collet.

Fulton 6" Forstner Bit Extender

The forstner bit extension gives you additional 5-5/8 inches of reach to bore deeper into your projects. This will help you create larger diameter starter holes or help when you need to drill in just a little further than the standard bit length will allow. The extension can be used with forstner bits on drill presses, lathes with a drill chuck installed (drill chuck not included) or with a power drill.

Easily Extend Your Forstner Bits

The forstner bit extension gives you additional 5-5/8 inches of reach to bore deeper into your projects. This will help you create larger diameter starter holes or help when you need to drill in just a little further than the standard bit length will allow. The extension can be used with forstner bits on drill presses, lathes with a drill chuck installed (drill chuck not included) or with a power drill.

Ideal for Boring Deep Holes

The extension works exceptionally well for projects like salt shakers, pepper mills or even wood turned beverage mugs. Contractors use the extension when they need to bore deep holes for running cables or wires and they also use it for joining larger timbers.

Great for Boring Out Starter Holes

One of the most common uses for the forstner bit extension is for woodturners who need to bore out starter holes on larger vessels.

Please note....

Some forstner bit manufacturers produce bits that say 3/8 inch shank size when in fact they are not. If you measure your bit shank and it is 3/8 inch, your bit should fit once the set screws are loosened

The collet outside diameter is 25/32" without the set screws protruding outward. The reason this is important is that as we mentioned earlier, some bits may have slightly different shank sizes. This means the set screws may protrude outwardly from the collet. Forstner bits and Machinery shown in pictures are NOT included.

Minimum Hole Diameter

The minimum size hole this extension will allow you to drill is 13/16 inch.

×

10" Forstner Bit Extender

Drilling with forstner bits to achieve a flat bottom hole or to start a deep hole turning project like on a larger vase or vessel is essentially impossible with a standard length forstner bit. To remedy this issue we have developed an extra long, heavy duty steel extension that allows you to secure a 1/2 inch shank forstner bit into the end collet.

10" Forstner Bit Extender

The forstner bit extension gives you additional 8-1/2 inches of reach to bore deeper into your projects. This will help you create larger diameter starter holes or help when you need to drill in just a little further than the standard bit length will allow. The extension can be used with forstner bits on drill presses, lathes with a drill chuck installed (drill chuck not included) or with a power drill.

Extend Your Forstner Bit Capabilities

Drilling with forstner bits to achieve a flat bottom hole or to start a deep hole turning project like on a larger vase or vessel is essentially impossible with a standard length forstner bit. To remedy this issue we have developed an extra long, heavy duty steel extension that allows you to secure a forstner bit into the end collet

More Drilling Depth for Larger Projects...

We've all been there. We need either a lot more or just a little more depth for a woodworking project we're working on. Some of us may have a longer forstner bit, but for the most part we are stuck trying to find something that will work. In steps the 10" long Heavy Duty Forstner Bit extender! Now you can gain up to 8-1/2" of drilling depth on top of your standard forstner bit drilling depth. Ideal for wood turners, carpenters, woodworkers and more.

Built Tough

Struggling to find a forstner bit extension for larger jobs that is not only long enough, but strong enough is now a thing of the past! This heavy duty forstner bit extender is made from solid, machined steel to exacting specifications. This means that it will stand up to most any type of wood working project and more. The forstner bit extender is designed to be used with forstner bits only.
