Drill Press & Accessories

Drill Press Table

Drill press machines are great for woodworking, metal working, plastic or composite drilling and more when you need to drill a straight hole or many holes in quick succession. The trouble with most drill press machines is that the table top that comes with them are not very practical. In steps the Fulton Drill Press Table, which is one of the thickest, most dense, vibration absorbing tables available today.

Fulton Drill Press Table with Aluminum Pre-Drilled L Fence Features:

Laminated on Top and Bottom

The Drill Press Table measures approximately 15" x 24" x 1-3/8" thick and is laminated on both top and bottom to prevent warping and to keep the table top flat. The top of the table is laminated with a smooth material that allows for easy positioning of your stock and is very easy to clean with household cleaners. The table also has a zero clearance is included that can be used for specific size bits

Unique Track Mounting System

Another unique feature is that the table has been designed to fit on most any drill press table with a unique track mounting system underneath the table. Two tracks run front to back for jigs and fixtures and they accept any 3/8" hex head bolt.

Post Knobs Inlcuded

You can mount the table top with the included post knobs if you have a slotted factory table top on your drill press or you can use the included aluminum hold down clamps to mount to any other style of table top.

Zero Clearance Insert

Below the zero clearance insert is an opening that measures approximately 5-5/16” x 5-5/16” at the top with a circle cut out of the center that is about 3-3/4” in diameter. The circular cut-out is approximately 1” deep. This gives you plenty of room to drop a drum sander below the top surface of the table and use the drill press like a spindle sander. You can use a drum sander that is as large as 3” in diameter.

Drill Press Table

Our Deluxe Drill Press Table comes with a 32" MDF fence with mini-track pre-installed and a UHMW stop block with knob and bolt. This kit has the same unique post knob to T-track attachment system that comes standard on all of our drill press tables. The table measures approx. 15" x 24" and is laminated on both the top and the bottom to prevent any kind of warping and to keep the top flat.

Fulton Drill Press Table with MDF Fence System and UHMW Stop Block Features:

1-3/8" Thick and Laminated

The Fulton drill press table is a full 1-3/8" thick and is laminated on the top and bottom to keep moisture out. The extra thick table top serves a few important purposes. First, is that it helps absorb much of the vibration which provides you with a stable working surface. Second, it allows for a unique track mounting system that lets you move the table into most any position needed.

Zero Clearance Inserts

The table also features a large opening with a zero clearance insert. The opening in conjunction with the zero clearance insert is designed to be drilled into to create a tight space around sanding drums (not included). This allows you to easily sand the edge of your curved projects without the cost of larger machinery. The table comes with two inserts.

32" MDF Fence

The 32" MDF Fence has a 1/4" x 20 T-Track on the top front that allows the use of hold-downs, stop blocks, jigs, etc...

Fulton Deluxe Drill Press Table

The Fulton Deluxe Drill Press Table with Adjustable Aluminum Fence is the perfect addition for most any drill press. If you have a large floor drill press or a smaller bench top, odds are this add-on table top will quickly and easily mount to it. This feature rich drill press table allows you to drill accurate, repetitive holes, sand projects using the zero clearance plate, drill straight holes with an adjustable fence all the while it reduces vibration since it is a full 1-3/8” thick.

Fulton Deluxe 1-3/8" Thick Drill Press Table
with Precision Tilt Capable Adjustable Fence System

The most complete after market drill press table available. With all the accessories and features not available on other table tops, the Fulton Deluxe Drill Press Table is sure to expand your drill press machine capabilities the moment you mount it!

Fulton Deluxe Drill Press Table Features:

High Quality Parts for High Quality Projects and High Quality Results

No matter the size and scope of your projects the Fulton Deluxe Drill Press Table will be the perfect complement to your drill press to help drill precisely located, straight, true holes time after time after time. Whether using a standard drill bit, brad point bit or even large multi-tooth forstner bits, this table is the perfect table to help support your project and help get the job done.

Precision Aluminum Fence System

When we were designing this fence, we had a number of customers call in about other manufacturers drill press fences. One of the most pointed out flaws that there was no way to square the fence to the drill bit. The only way to do this with other fences was to shim the front or back until you got kind of sort of close. Now, with the Fulton Precision Aluminum Fence, you can actually tilt the fence back or front using set screws at both ends of the fence! This makes squaring up your fence way easier than ever before! The fence includes a center finding measuring tape to make locating center on your stock easy. The aluminum fence stop is the perfect way to drill holes at the same spot on multiple pieces of stock. When not in use the flip stop can be flipped up and out of the way or it can be completely removed by sliding it off the fence.

That's a THICK Table Top!

Why such a thick table top you ask? Well in this case, we believe that thicker is definitely better than thinner table tops. Our thicker table helps absorb the natural vibrations caused by drill presses and helps make the drilling process feel much smoother. Thinner tables tend to feel kind of well, thin in comparison after using the Fulton Table Top. Its a full 1-3/8" thick of laminated MDF that is sealed on the top and bottom to help prevent moisture and bowing of the table.

Slotted Factory Table? No Slots on your Factory Table? No Problem!

Unlike many other drill press tables, the Fulton Deluxe Drill Press Table can be mounted to virtually any drill press! With your unique track base mounting system, you can use standard post knobs to mount the table to slotted factory table tops or use aluminum hold downs to clamp the table to non-slotted factory table tops.

Prevent Tear-out and Edge Sand Projects with Ease!

The Fulton Deluxe Drill Press Table comes with two Zero Clearance Insert Plates. The reason we include a second plate is simply because many woodworkers like to drill multiple size holes into the plates for multiple size bits. Another reason is for one plate to be used for drilling while the other can be used for sanding. Simply drill holes that are slightly larger than your sanding drum diameter. This allows you to drop a sanding drum down below the surface of the drill press table to make edge sanding easy. The plates can be rotated after they are drilled for a fresh area for a new hole.

Mounts to Most Any Size Drill Press

The Fulton Deluxe 1 3/8 inch Thick Drill Press Table with Precision Tilt Capable Adjustable Fence System can be mounted to most any drill press from 10" or larger. The table will work on 10" drill presses. When mounted to a 10 inch drill press, the center of the opening on the Fulton Deluxe Drill Press Table will not line up on center with the drill press chuck as it does on larger drill press machines. This means that the largest diameter drill bit you can use without drilling into the Fulton Deluxe Drill Press Table is 1-5/8" in diameter on 10" drill press machines. Larger drill press machines will accept larger diameter drill bits.

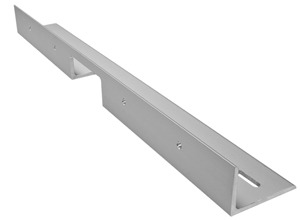

Aluminum Precision Adjustable Drill Press Fence

This is a uniquely designed uni-body, L-style aluminum fence that is completely adjustable to achieve squareness to your table top and drill bit. It not only makes drilling straight holes easier, it makes drilling taller, longer stock much more accurate.

Fulton Aluminum Precision Adjustable Drill Press Fence Features:

Quick Adjustments

The fence is secured to your table top using two sets of ¼” x 20 knob and t-bolts. The knobs can be loosened for quick adjustments to the positioning of the fence. Once in place, simply tighten the knobs to secure the fence into the needed position. The fence measures approximately 24” in length and is about 2¼” tall. It has a slightly recessed slot across the face of the fence for the PSA center finding tape measure to sit flush.

Flip Stop for Repetitive Drilling

The fence system also includes a flip stop for repetitive drilling. The flip stop can be completely removed from the fence or it can be positioned up and out of the way when not in use. The stop works in conjunction with the center finder tape on the fence. The reason for the center finder tape is so you can accurately measure distance starting from the drill bit and work your way out from center. This method of measuring on the drill press comes in very handy on many drill press applications.

Easily Adjustable

To adjust the fence, you simply rotate the pre-installed set screws inside the fence or the ones on the back side of the fence until you are square. We recommend using a machinist square to accurately do this (square not included).

Specifications

The fence can be used on multiple brands and styles of after market drill press tables. Be sure to measure your drill press tables dimensions before purchasing. The distance between each fence slot (inside to inside of each slot) is approximately 8-13/16” and approximately 9 3/8” on center. Make sure your mounting tracks properly align with these dimensions and that your tracks use ¼” x 20 t-bolts or hex head bolts. Each slot is approximately 5/16” wide and 1-7/16” long.

Built-in Universal Track

The Aluminum Precision Adjustable Drill Press Fence is made from a solid piece of extruded aluminum for extra rigidity and durability. The fence has slotted holes on the back side to fit on to many different after market drill press table tops. The top side of the fence has a built-in track for adding any jig or fixture that uses ¼” t-bolts or ¼” hex head bolts.
