Workbench Caster Set

Workbench Caster Set of 4

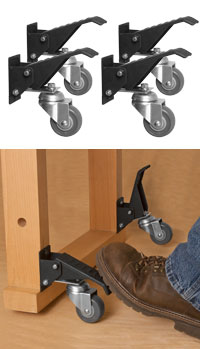

Move your workbench to any area in your shop with our 360° workbench casters. This set of 4 casters work by simply pushing down on the pedals to raise your workbench off the floor. Once elevated you can move your bench as desired, then lift up on the pedals to disengage and your workbench sits firmly on the floor. Each lift pedal is textured to provide extra grip. The 2-3/8” urethane casters are rated for 100 lbs of capacity, which means all four together give you a total weight capacity of 400 lbs. The Workbench Caster 4 Pack includes all of the mounting screws necessary for easy installation.

See Installation Instructions

No. Description
Price
Quantity
4197
Workbench Caster Set of 4
$79.99

Product Divider Image

Heavy Duty Casters

all 3 style casters 3' and 4"

Color may vary slightly.

Easy rolling non-marring tires that won’t get flat spots during extended periods of non-movement. Wheels ride on ball bearings for long life and swivel turning.
  • Style A:
    Casters come in 3" only.
    Features swivel capabilities as well as a double locking system that locks the swivel and the wheel simultaneously and has a load bearing rating of 300 lbs. with a 1/2” mounting hole.

  • Style B:
    Casters come in 3" or 4".
    Both 3" & 4" Casters features swivel capabilities as well as the double locking system, and has a weight capacity of 300 lbs. with a mounting plate that measures 2-5/8 x 3-3/4”.
    - 3" casters have an over all height of 4-3/16”.
    - 4" casters have an overall height of 5-1/4”.

  • Style C:
    Casters come in 3" or 4".
    Both 3" & 4" Casters are fixed and have a 2-5/8 x 3-3/4” mounting plate with a load bearing weight of 300 lbs.


    Mounting hardware not included.

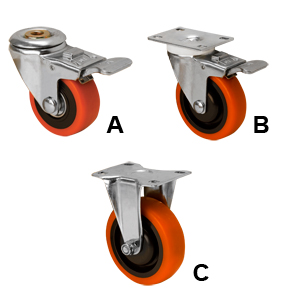

all 3 style casters 3' and 4" 3" & 4" Caster - Swivel, double lock with 1/2” mounting hole 3" & 4" Heavy Duty Double Locking Swivel Caster with mounting plate 3" Heavy Duty Non-Swivel Caster

No. Description
Each
4 Plus
Quantity
1350
(A)
3" Swivel Caster
with Double Lock and 1/2” Mounting Hole
$12.99
$11.99

1351

(B)

3" Heavy Duty Swivel Caster
with Double Lock and Mounting Plate

$15.99

$14.99
1352
(B)
4" Heavy Duty Swivel Caster
with Double Lock and Mounting Plate
$16.99
$15.99

1354

(C)

3" Heavy Duty Fixed Caster
Non-Swivel and Non-Locking Caster

$9.99

$8.99

1355

(C)

4" Heavy Duty Fixed Caster
Non-Swivel and Non-Locking Caster

$10.99

$9.99
Product Divider Image

Medium Duty Caster Wheels

Medium Duty Caster Wheels

Color may vary slightly.

The Medium duty casters have a load rating of 220 lbs per caster. Easy rolling, non-marring, polyurethane tires will not "flat spot" during long periods of remaining stationary. These provide a rock solid base to allow for smooth, easy mobility around the shop and garage. Great for mobile
machinery, workbenches, tables and more. The casters can be purchased with a stationary or fixed plate or with a swivel plate. Double brake locks both wheel and swivel rotation with the touch of a toe. Locking casters allow for smooth, easy mobility around the shop, but quickly lock in place with a foot-activated lever when you want to anchor your stand. These caster are available in 3" and 4" sizes. Mounting Hardware is not included.

No. Description
Each
4 Plus
Quantity
3403
(A) 3" Fixed Caster
$8.99
$7.99

3404

(B) 3" Locking Swivel Caster with brake

$11.99

$10.99
3405
(A) 4" Fixed Caster
$11.99
$10.99

3406

(B) 4" Locking Swivel Caster with brake

$14.99

$13.99
Product Divider Image

Standard Duty Casters

Standard Caster Wheels

Standard Duty Casters feature a soft gray rubber wheel molded to a polypropylene hub with an oil-less bearing. Style A is a 3” fixed caster with a 2-1/2” x 2-3/4” mounting plate with a 155 lb. load bearing rating. Style B is a swivel caster with a single wheel lock system and is rated for 155 lbs, and has a 2-1/2” square mounting plate. Style C is a swivel caster with a double locking brake system (swivel & wheel) is rated for 255 lbs. with a 3/8” x 1” post for easy mounting. All casters are 4” in height. Mounting hardware not included.

No. Description
Each
4 Plus
Quantity

1348

(A) 3" Fixed Caster

$4.99

$3.99
1349
(B) 3" Swivel With Brake
$6.99
$5.99
3354
(C) 3" Swivel / double brake /post mount
$12.99
$11.99
