How it Works
This dovetail system works with precision bearing guides on the shank of the router bit instead of using those hard to center brass bushing guides. Since the bearing is already centered on the bit, it makes setting up to cut the joint fast and easy. We have milled the aluminum template to match the bearing size so that the bit is perfectly centered and there is no slop, no wear and no waste. Unlike other templates you have seen, our jig will work with two different thicknesses of stock. It also does not limit your stock width, it's as simple as making your first cut, then slide the jig down, realign and make your second cut. You can also attach a second Dovetail Wiz with tabs (sold separately) and make the longer width cuts all at once without moving the jig.

Make different types of joints
You can also make box style joints as well as skip style joints with the Dovetail Wiz. This means the types of projects you can do with this jig are virtually endless!
Dovetail Wiz Image
Dovetail Wiz Standard
Dovetail Wiz Standard
Includes:
Your Choice of 15" or 30" Aluminum Dovetail Wiz
1 each 7° Dovetail Router Bit
1 each straight bit with bearing
1 each instructional manual
Dovetail Wiz Complete Package
Dovetail Wiz Complete Package
Includes:
Your Choice of 15" or 30" Aluminum Dovetail Wiz
1 each 7° Dovetail Router Bit
1 each straight bit with bearing
1 each Instructional manual
1 each Hope/Toy Chest woodworking plan
1 each Instructional DVD
1 each Pair of 1/4" x 20 T-Track clamps
1 each Pair of 1/4" x 20 T-Track
1 each Pre-Milled MDF mounting block

Dovetail Wiz Jig Instructions

No.
Description
Price
Quantity

  3452

  15" Dovetail Wiz

$159.99

  3446KIT

  15" Dovetail Complete Package

$179.99

  3453

  30" Dovetail Wiz

$259.99
  3447KIT

  30" Dovetail Wiz Complete Package

$289.99

Product Divider Image

15" Dovetail Wiz Add-On Kit

15" Dovetail Wiz Add-On Kit
Add-on Kit
If you are building a large chest or maybe even a dresser
you’ll need a larger dovetail jig setup. With the unique
design of the Dovetail Wiz, you will be able to add as many
Aluminum templates (sold separately) as you want. Each jig
and add-on kit template have specially designed tabs on
each end that allow you to attach as many jigs as needed for
any length of cut. This gives you total control no matter how
big your project is.


Includes:
1 each 15” Aluminum Dovetail Wiz Template
1 each pair of attachment screws
1 each full Dovetail Wiz Instructions

Click Here for Instructions

No.
Description
Price
Quantity
3577
  15" Dovetail Wiz Add-On Kit
$119.99

Product Divider Image

Dovetail Wiz Router Bits

2 Piece Replacement Router Bits
2 piece Dovetail Wiz
Replacement Bit Set

These two bits are the
replacement bits for the
Dovetail Wiz Jig for cutting standard size dovetails on stock ranging from 1/2” to
3/4” in thickness.

2 Piece Small Router Bit Set
2 piece Dovetail Wiz
Small Router Bit
s
Used for cutting dovetails in stock thicknesses ranging from 1/4" to 1/2" in thickness.

2 Piece Mini Router Bit Set
2 piece Dovetail Wiz
Mini Router Bits

Used for cutting dovetails in stock thicknesses ranging from 1/8" to 3/8" in thickness.
Box Joint Set
Box Joint Bit with
1/2" Brass Setup Bar

Used for cutting Box Joints in 1/2"stock thicknesses only.

Router Bits Listed Below are used with both the 15" & 30" Dovetail Wiz. Item #3452 & #3453
No.
Description
Price
Quantity
3455
  2 Piece Replacement Router Bits
$39.99
3454
  2 Piece Small Router Bit Set
$39.99
3456
  Box Joint Set
$29.99
3457
  2 Piece Mini Router Bit Set
$39.99

Product Divider Image

6 Piece Dovetail Wiz Router Bit Set

6 Piece Dovetail Wiz Router Bit Set



6 pc Dovetail Wiz Router Bit Set
Get all the accessory bits you need for the Dovetail Wiz in
one convenient set. The set includes the Small Router Bit
Set, the Mini Router Bit Set and the Box Joint bit with a 1/2”
brass set up bar. Along with the standard router bit set that
comes with the Dovetail Wiz you will be able to cut most any
thickness stock when it comes to making dovetail joints.

No. Description
Price
Quantity
3437
  6 Piece Dovetail Wiz Router Bit Set
 (Includes Item #3454, #3456 and #3457 in Wood Box)
$105.99

Product Divider Image

Mounting Blocks for Dovetail Wiz


Mounting Blocks for Dovetail Wiz

Mounting Block
Made from 3 pieces of laminated MDF, this mounting block
provides the perfect platform to mount the Dovetail Wiz
template. It also gives you backside support during the cutting
process which virtually eliminates tear out. The block is
pre-milled with a slot that accepts 1/4” x 20 t-track (sold
separately) for use with t-track clamps (sold separately).
Available in 15” or 30” lengths.

Includes:

1 each 15” or 30” Mounting Block

Click Here for Instructions

No. Description
Price
Quantity
3450
  Mounting Block for 15" Dovetail Wiz
$29.99
3426
  Mounting Block for 30" Dovetail Wiz
$24.99

Product Divider Image

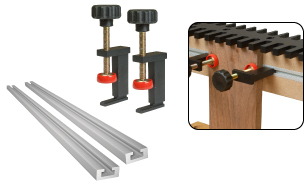

Clamping Kit for Dovetail Wiz

Clamping Kit for Dovetail Wiz
Clamping Kit
No more need for annoying, bulky c-clamps or f-clamps! The
clamping kit includes two clamps and two t-tracks that are
designed to be used with a mounting block. After the t-track is
installed on to a mounting block, the clamps slide right into
the track and are completely adjustable from side to side to
accommodate most any width of stock. Once the stock is in
place, slide the clamps up against the both sides and secure.


Includes:

1 each pair of 15” or 30” 1/4” x 20 t-track
1 each pair of 1/4” x 20 t-track clamps
No. Description
Price
Quantity

3463

  15" Clamping Kit for Dovetail Wiz
  (For use with 15" Dovetail Wiz #3452)

$39.99

3464

  30" Clamping Kit for Dovetail Wiz
  (For use with 30" Dovetail Wiz #3453)

$49.99


Product Divider Image

Micro Adjuster for 15" and 30" Dovetail Wiz

Micro Adjuster for 15" and 30" Dovetail Wiz

Micro Adjuster

Adjust your jig alignment to perfection with the Micro
Adjuster. Attach the Micro Adjuster to the both end tabs of the
Dovetail Wiz, secure the “L” bracket to the mounting block
and your ready to Micro Adjust to the exact position you need.
The Micro Adjuster can be used with both the 15” and 30”
Dovetail Wiz set ups.


Includes:

1 each pair of Micro Adjusters for the Dovetail Wiz
No. Description
Price
Quantity
3444
  Micro Adjuster for 15" and 30" Dovetail Wiz
$39.99

Product Divider Image

Scribing Knife

Woodworkers use marking knives because a knife line is narrower and more precise than that made by a pencil. In addition, a knife scores the wood, which eliminates any chance of splintering when the joint is cut. A marking knife is sharpened with a single bevel, and in use, the flat side is placed against your straight edge. Since our marking knife has a spear point, it can be used either right or left handed.

Item# Description Price Quantity
3462
Scribing Knife
$14.99

Product Divider Image

Dovetail Wiz Instructional DVD

Dovetail Wiz Instructional DVD
Instructional DVD
Learn how to use the Dovetail Wiz from start to finish with the
complete instructional DVD. The DVD contains step by step
instructions on how to set up the jig as well as how to make
different types of dovetail joints.




Includes:

1 each instructional DVD
No. Description
Price
Quantity

3343

  Dovetail Wiz Instructional DVD

$14.99
