Miter Saw & Accessories

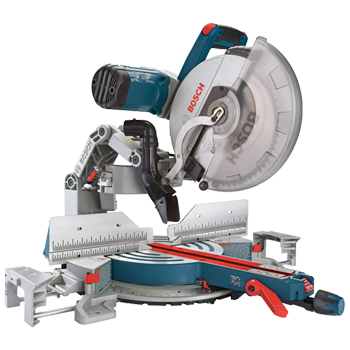

12" Dual-Bevel Glide Miter Saw

The Bosch-exclusive Axial-Glide™ offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.

• The Bosch GCM12SD is a 12 In. Dual-Bevel Glide™ miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide™ system
• Pre-aligned Squarelock™ fences help the saw maintain precision throughout its life
• A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
• The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
• Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40 In. left to right
• Large easy-to-read uniform bevel & stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
• Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
• Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
• Category best 90% dust collection - optimized for cutting 2x material with a vacuum
• Ergonomic ambidextrous trigger handle with soft grip - large form fitting ergonomic handle provides comfort for all-day use

Includes:

• 12" Dual-Bevel Glide Miter Saw
• 1 ea. 12” 60T Blade
• 1 ea. Material Clamp
• 1 ea. Dust Bag

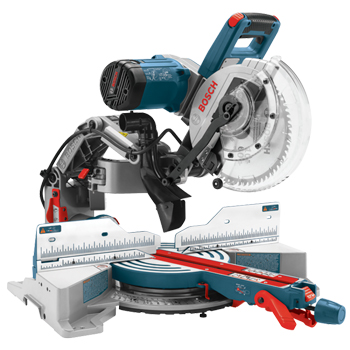

10 " Dual-Bevel Glide Miter Saw

Bosch CM10GD 10 In. Dual-Bevel Glide miter saw delivers accuracy and cutting control at all angles, as well as durable precision throughout the life of the tool. The innovative Axial-Glide System provides wider cross-cuts, enhanced alignment and smoother glide, and the compact design takes up to 10 In. less front-to-back workspace than a slide miter saw. With a 15-amp motor providing 4,800 no-load rpm, there is plenty of power. Adjustable miter and bevel detents enable users to make precise common miter and bevel cuts, and the override allows for easy angle adjustment. The bevel lock lever and range selector are located safely upfront so users don't have to reach around behind the saw to make a bevel adjustment.

• The Axial-Glide System’s articulated hinge arms – reduce the saw’s front-to-back footprint by up to 10 In. compared to slide saws with similar capacities
• Axial-Glide System – offers more durable precision than side saw rail systems
• Powerful 15-amp motor – delivers 4,800 no-load rpm for professional cutting capacity
• Wide cutting capacities – includes 12 In. horizontal cut capacity, 5-1/2 In. vertical baseboard cut capacity against the fence and a 6 In. crown cut capacity nested against the fence (45° spring)
• Bevel lock lever and range selector – are located upfront for quick, easy settings without having to reach around behind saw
• Tall sliding 4-1/4 In. fences – for easy bevel set ups and increased crown and base molding capacity
• Wide 47° left/47° right bevel capacity – with detents at 0°, 33.9°, 45° left/right for easy setting of the most-common bevel angles
• Adjustable miter detents – designed to be accurate and durable, and includes detents at 0°, 15°, 31.6°, 22.5°, 45°, 60°
• Push-button miter detent override – provides easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Large easy-to-read uniform bevel and stainless steel miter scales in degrees plus roof pitch angles – for more convenient cut setup
• Category-best 90% dust collection – optimized for cutting 2x material with a vacuum
• Ergonomic ambidextrous trigger handle with soft grip – provides comfort for all-day use and a large form-fitting ergonomic handle

Includes:

• 10 " Dual-Bevel Glide Miter Saw
• 1 ea. 10" x 60tpi Carbide-Tipped Saw Blade
• 1 ea. Wrench
• 1 ea. Work Clamp
• 1 ea. Dust Bag
• 1 ea. Vacuum adapter/elbow

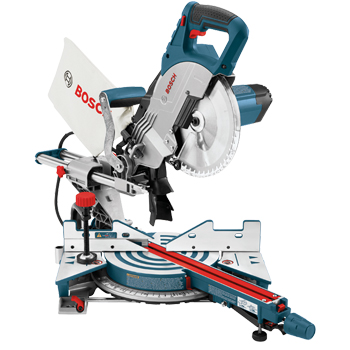

8-1/2" Single Bevel Sliding Compound Miter Saw

The CM8S 8-1/2 In. single bevel sliding compound miter saw features a Bosch exclusive design delivering a well-balanced saw with a top carry handle at the center of gravity and weighs only 37 pounds. These features easily provide one-handed portability on and off the job. Accessible controls make it easy to change bevel settings without reaching behind the saw. The integrated expanding work piece supports, large easy to read miter and bevel scales, and detent system provides quick and accurate cuts. The CM8S also has the same crosscut capacity (12-1/4 In.) as a 10 In. miter saw, at 30% lighter weight.

• Ultimate portability – Bosch exclusive design delivers a well-balanced saw with a top carry handle, and a weight of only 37 lbs. easily provides one-handed portability on and off the job
• Easy access bevel controls - bevel lock lever and bevel turret stops are located on side of tool for quick and easy adjustments
• Integrated expanding base extensions - expands up to 29 In. left to right for additional work-piece support
• Large easy-to-read miter and bevel scales - uniform marks from 52˚ left to 60˚ right with 10 adjustable miter detents set at most common cuts
• Adjustable front stabilizing foot - maintains saw stability when performing slide cuts allowing maximum capacity: cross cut 12-1/4” at 0˚, 8” at 45˚, 2-3/4” upright, 3-1/2 crown
• Miter detent override - intuitive easy to access thumb-actuated override
• Ergonomic ambidextrous trigger handle - form fitting handle provides comfort for all day use
• Clear lower guard - for unobstructed view throughout the cut

Includes:

• 1 ea. CM8S Miter Saw
• 1 ea. Dust Bag
• 1 ea. Blade Change
• 1 ea. Wrench 8-1/2" Blade

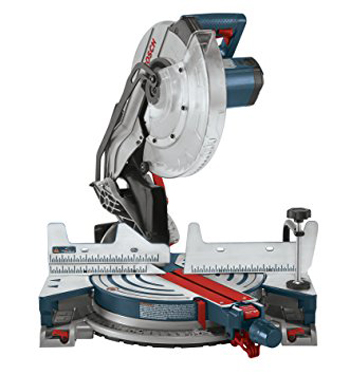

12" Single Bevel Compound Miter Saw

12 In. Single bevel compound miter saw. Equipped with a rear carry handle for superior portability. The integrated workpiece expand to nearly 37 In. for the highest material support category. The quick reach bevel lock is located on the side of the bevel post for quick and easy adjustments. Ergonomic ambidextrous trigger handle for comfortable all day use.

• Ultimate one-handed portability - with a compact design, comfortable one-handed rear carry handle and optimized center of gravity
• Category best all-around cut capacity - 6 In. Max crown, 6-3/4 In. Max base against fence, 2 In. x 8 In. at 0° and 2 In. x 6 In. at 45° cross cut for professional applications
• Squarelock™ quick-release fences - high-precision Squarelock™ fence aligns 90° to table and requires no adjustment; One-Touch lock/unlock to slide fence for added support
• Integrated workpiece supports - expand to nearly 37 In. for the highest material support in category
• Quick-reach bevel lock - located on the side of the bevel post for quick an easy adjustments
• Large easy-to-read uniform bevel and miter sabrecut - 52° R/L miter capacity with marked detents, 47°L/-2° R bevel capacity
• 33.9°, 45°, 47° and -2° bevel stops - for accurate cuts at the most common bevel angles
• Nine adjustable miter detents - ATB 0°, 15°, 31.6°, 22.5°, 45° L/R
• Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Ergonomic ambidextrous trigger handle - form fitting handle provides comfort for all day use
• 15 Amp, 4300 RPM motor - professional power and performance

Includes:

• 1 ea. CM12 Miter Saw
• 1 ea. Dust Bag
• 1 ea. Blade Change Wrench
• 1 ea. 12" Blade

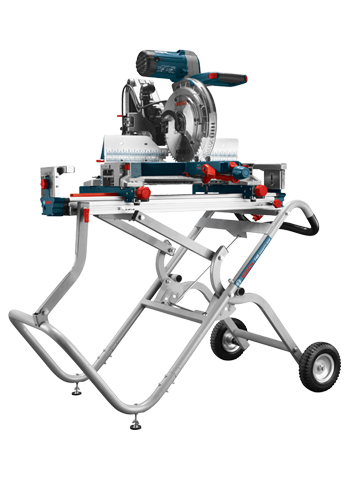

Gravity-Rise Miter Saw Stand

Note: Miter Saw not included

Bosch benchtop tools provide the precision and performance your projects require. Durable quality is not only in every tool, but the trust you have in Bosch benchtop tools. The integrated out feed and supports holds up to 18 ft of material. The universal mounting system allows for use with all major competitors' saws. Equipped with an adjustable telescoping leveling leg to provide stability on uneven surfaces.

• Integrated out feed and supports — up to 18 Ft. of material support capacity
• Adjustable telescoping leveling leg — provides stability on uneven surfaces
• Adjustable height out feed — up to 12 In.
• Universal mounting system — for use with all major competitors' saws
• Integrated rubber wheels — easily move stand with saw attached from jobsite to jobsite.

Used on Model No.

• CM10GD
• CM12SD
• 5312, CM8S
• CM12
• Also fits most competitors' miter saws
