Wide Crown Molding Profile
Crown molding is the perfect way to transform a room, giving height and elegance to an otherwise ordinary ceiling. But commercially manufactured wide crown molding is expensive, hard to find, and the selection of available wood species is very limited. Now, thanks to Freud’s unique Wide Crown Molding bits, woodworkers can mill their own 5-1/2" wide Crown Molding economically and in their choice of wood and profile. These bits are the only router tooling capable of producing such wide crown molding, they also feature a carefully designed shape that lets you mix and match profiles to produce precisely the shape you need – up to fifteen different profiles from only six bits! Use the same bit on the top and bottom cut (diagram left) to create matching profile molding. You can also mix and match two different molding bits to create the nine profiles shown below.

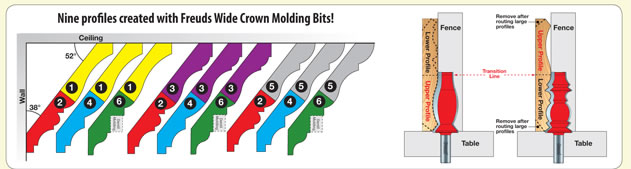

Freud 9 different profiles image.

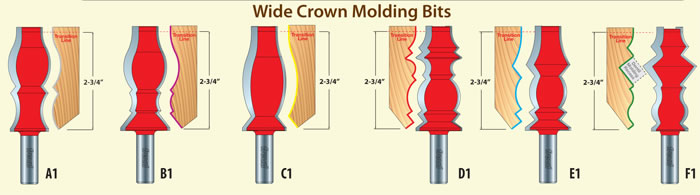

Freud Wide Crown Molding Bits



No.
Freud #
Profile #
Overall
Diameter
Carbide
Height
Shank
Diameter
Overall
Length
Price Quantity

A1

3024
99-414
Upper 1
1-5/16"
3"
1/2"

4-7/16"

$80.99

B1
3026
99-416
Upper 3
1-13/32"
3"
1/2"
4-7/16"
$80.99

C1
3028
99-418
Upper 5
1-1/4"
3"
1/2"
4-7/16"
$80.99

D1
3025
99-415
Lower 2
1-3/8"
3-1/16"
1/2"
4-9/16"
$80.99

E1
3027
99-417
Lower 4
1-3/8"
3-1/16"
1/2"
4-9/16"
$80.99

F1
3029
99-419
Lower 6
1-3/8"
3-1/16"
1/2"
4-9/16"
$80.99

G1
3052
peachtree
6 pc Set
-
-
1/2"
-
$399.99

Product Divider Image

Molding Bevel Cutter

Freud Molding Bevel Cutter



Freud’s Molding Bevel Cutter is a fast, easy way to finish your crown molding and ensure a perfect 38° installation for an authentic crown molding design. Features matched 38° and 52° cutting edges. Rout the top edge of the molding with stock face down, then flip over to rout the bottom edge face up. Works with all profiles in the Large Crown Molding system. Use in a router table with fence only. The bevel molding bit measures 2-3/8" in overall diameter, carbide height - 1-3/8", shank diameter - 1/2", and overall length is 2-13/16".

No. Description
Price
Quantity

3053

Molding Bevel Cutter (Freud # 99-412)

$80.99
