Freud raised panel bits produce panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance.

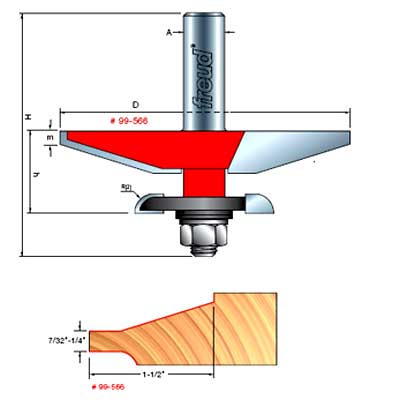

Shaker Style Freud Quadra-Cut™ Raised Panel Bit #99-566 with Back cutter

Shaker Style Freud Quadra-Cut™ Raised Panel Bit #99-566 with Backcutter

This style of Freud Quadra-Cut™ Raised Panel Bit #99-566 with Back cutters is called by more than one name, bevel, shaker or even flat panel. No matter what you call it, it goes well with any type rail and stile profile.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a back cutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius back cutter gives double-sided appearance and can be replaced with optional 54-560 square back cutter for a more contemporary look.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
3-1/2"
1"
5/32"
3/16"
1/2"
3"

No. Description
Price
Quantity

2864

Shaker Style Freud Quadra-Cut™ Raised Panel Bit
#99-566 with Back cutters

$119.99


Product Divider Image

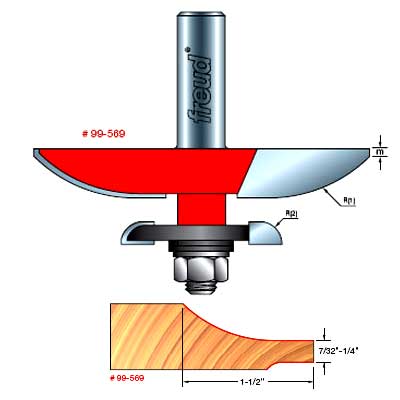

Cove Style Freud Quadra-Cut™ Raised Panel Bit #99-569 with Back cutter

Freud Quadra-Cut™ Raised Panel Bit #99-569 with Backcutters

This style of Freud Quadra-Cut™ Raised Panel Bit #99-569 with Back cutters is called a cove panel and goes well with the roundover style rail and stile cutter set.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a back cutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius back cutter gives double-sided appearance and can be replaced with optional 54-560 square back cutter for a more contemporary look.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
3-1/2"
1"
5/32"
1-1/2"
3/16"
1/2"
3"

No. Description
Price
Quantity

2865

Cove Style Freud Quadra-Cut™ Raised Panel Bit
#99-569 with Back cutter

$119.99


Product Divider Image

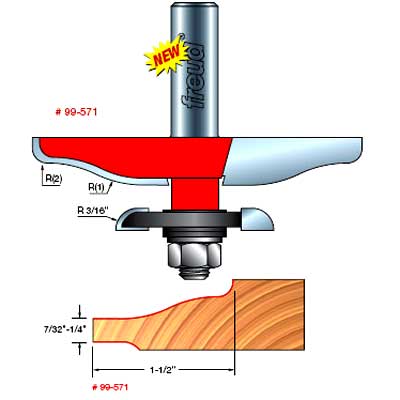

Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-571with Back cutter

Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-571with Backcutter

This style of Freud Quadra-Cut™ Raised Panel Bit #99-571 with Back cutters is called a ogee panel bit and goes well with the roundover and ogee style rail and stile cutter sets.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a back cutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius back cutter gives double-sided appearance and can be replaced with optional 54-560 square back cutter for a more contemporary look.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
3-1/2"
1"
-
1-3/16"
5/32"
1/2"
3"

No. Description
Price
Quantity

2866

Ogee Style Freud Quadra-Cut™ Raised Panel Bit
#99-571 with Back cutter

$119.99


Product Divider Image

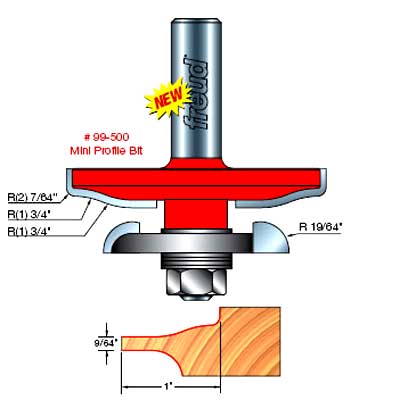

Mini Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-500 with Back cutter

Mini Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-500 with Backcutter

This style of Freud Quadra-Cut™ Raised Panel Bit #99-500 with Back cutter is called a mini ogee panel bit and only works with the mini Rail and Stile Set 99-266
or custom milled parts.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a back cutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius back cutter gives double-sided appearance and can be replaced with optional 54-560 square back cutter for a more contemporary look.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
2-19/32"
7/8"
-
3/4"
7/64"
1/2"
2-51/64"

No. Description
Price
Quantity

2881

Mini Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-500 with Back cutter

$120.99
