Modular Step Fitting

Modular Step Fitting
Modular Step Fitting Modular Step Fitting

The Modular Step Fitting for dust collection actually pulls apart to reveal 4 separate fittings! The end is 4" which allows a standard 4" hose to be easily attached. Each of the fittings have two different I.D.'s and two different O.D.'s. This gives you a total of 8 fittings in one. This also means that odds are you are going to find the ideal fit for your power tool or machine. When not in use, the fittings can be neatly stacked and stored for easy access when needed.

The second image shows the approximate sizes for all 4 sections of the fittings. The three smaller sections are slightly tapered on each end and the largest section is straight on both ends. The taper ends on the 3 smaller section give you more flexibility for fitting those odd sized power tool dust ports.

Note: All sizes are approximate



Item# Description Price Quantity
388 Modular Step Fitting $5.99

2 1/2" to 3/4" Rubber Hose Adaptor

2 1/2" to 3/4" Rubber Hose Adaptor

The 2½” to ¾” Rubber Adaptor large end will fit in a 2-1/2” shop vacuum hose. A flexible construction allows easy connection to any of your power tools. O.D. sizes:2-1/2”, 2”, 1-1/2”, 1-1/4” and 1”. I.D. sizes are 1/4” less than the O.D. sizes. Simply cut it to the size needed for the proper I.D. and O.D. fitting. Hose clamps are required.

Item# Description Price Quantity
434 2 1/2" to 3/4" Rubber Hose Adaptor $6.99

6" to 1" Adaptor

6" to 1" Adaptor

6” to 1” Adaptor is a six step down adaptor for a variety of different types of hookups. The step down sizes from the 6" to 1" Adaptor are 5”, 4”, 3”, 2½”, 2” and 1”. The Adaptor may be cut to fit your particular needs. Hose clamps are required for proper connection.

Item# Description Price Quantity
435 6" to 1" Adaptor $6.99

4" to 1" Adaptor

4" to 1" Adaptor

4” to 1” Adaptor is tapered from the 4” O.D. to the 1” O.D. Cut the adaptor at the desired diameter to fit to your machine port or smaller I.D. hose. Flat portions are at sizes of: 4”, 3”, 2-1/2” and 1” for hose to hose splices. Hose clamps are required.

Item# Description Price Quantity
433 4" to 1" Adaptor $5.99

4" to 1" Rubber Adapter

4" to 1" Rubber Adapter

The 4" to 1" rubber adapter has the exact same dimensions as the standard plastic adapter. The difference is that this adapter is rubber which gives you the "flexibility" to adapt it much easier than plastic. You can use the adapter in its full size or you may cut it at the needed spot for just the right fit. The adapter is measured by the inside diameters (I.D.) at both ends. Fits most standard 4" ports. Hose clamps are required for proper fit.

Item# Description Price Quantity
542 4" to 1" Rubber Adapter $7.99

2 1/4" to 4" Enlarger

2 1/4" to 4" Enlarger

2-1/2" to 4" Enlarger is a brand new fitting made of flexible plastic. This is one of those fittings that woodworkers have wondered, why don’t they make a fitting that goes directly from my 4" hose into my Shop Vac®? Well, here it is, an enlarger that accepts a 4" hose on one end, and the other plugs directly into a standard 2-1/4" Shop Vac® opening. A hose clamp is required on the 4" end for proper connection .

Item# Description Price Quantity
468 2 1/4" to 4" Enlarger $5.99

6" X 4" Y Adaptor

6" X 4" Y Adaptor

This 6" X 4" Y Adaptor has a 6" I.D. on the large inlet side and 3-15/16" O.D.'s on the two Y inlets. This Adaptor will adapt a single 6" O.D. pipe or connection to two 4" connections for 4" dust collection hose.

Item# Description Price Quantity
455 6" X 4" Y Adaptor $6.99

4-1/2" To 4" Dust Collection Hose Adaptor

4-1/2" To 4" Dust Collection Hose Adaptor

4-1/2" To 4" Dust Collection Hose Adaptor is used to connect your dust collection line to your standard 4" dust collection hose. Hose clamps are required for this type of connection.

Appx. OD on small end 3"-59/64" x OD on large end 4"-35/64".

Item# Description Price Quantity
425 4-1/2" To 4" Dust Collection Hose Adaptor $5.99

Offset 4" to 2-1/4" Adaptor

Offset 4" to 2-1/4" Adaptor

This unique Offset Adaptor lets you rotate the adaptor while setting it to your system in order to set the line out in just the perfect position. With the Offset adaptor you can now clear obstacles like wall studs or other items with out having to move fixed dust collection components.

Item# Description Price Quantity
470 Offset 4" to 2-1/4" Adaptor $5.99

Flexible Rubber Dust Collection Fittings

Flexible Rubber Dust Collection Fittings

Having difficulty connecting odd sized tool openings or European size fittings? The Rubber fittings are a perfect solution. The soft rubber fitting will stretch, flex and give allowing for a tight connection on a number of small power tools.

  O.D. I.D.
A: 1-1/2" X 1-29/32" 1 -9/32" X 1-11/16"
B: 1-3/8" X 1-7/16" 1-1/8" X 1-1/4"



Note: All sizes are approximate.

Item# Description Price Quantity
522 A: Flexible Rubber Dust Collection Fittings $3.99
521 B: Flexible Rubber Dust Collection Fittings $3.99

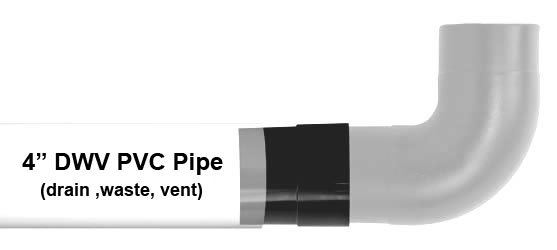

4" DWV (drain, waste, vent) PVC Pipe to
4" Hard Plastic Dust Collection Fitting

4" DWV (drain, waste, vent) PVC Pipe to
4" Hard Plastic Dust Collection Fitting

This adaptor allows you to go from common 4" DWV (drain, waste, vent) PVC pipe commonly available at home-centers to 4" dust collection fittings like elbows, T's, Y's and blast gates.

4" DWV (drain, waste, vent) PVC Pipe to
4" Hard Plastic Dust Collection Fitting sample
Note: Sample Use, fittings not included.



Item# Description Price Quantity
528

4" DWV (drain, waste, vent) PVC Pipe
to 4" Hard Plastic Dust Collection Fitting

$6.99

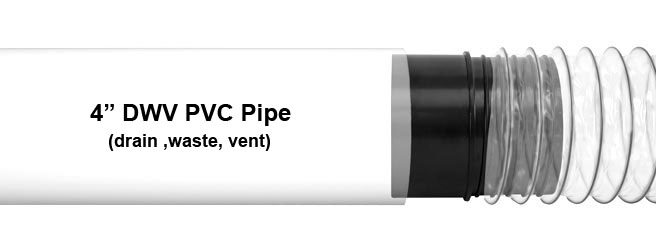

4" DWV (drain, waste, vent) PVC Pipe
to 4" Dust Collection Hose Plastic Adaptor

4" DWV (drain, waste, vent) PVC Pipe
to 4" Dust Collection Hose Plastic Adaptor

This adaptor allows you to go from common 4" DWV (drain, waste, vent) PVC pipe to 4" dust collection hose. Now you can go from 4" DWV (drain, waste, vent) PVC pipe directly to 4" dust collection hose with just this one adaptor. Works with all our 4" dust collection hose. See dust hose

4" DWV (drain, waste, vent) PVC Pipe
to 4" Dust Collection Hose Plastic Adaptor
Note: Sample Use, fittings not included.



Item# Description Price Quantity
529 4" DWV (drain, waste, vent) PVC Pipe
to 4" Dust Collection Hose Plastic Adaptor
$6.99

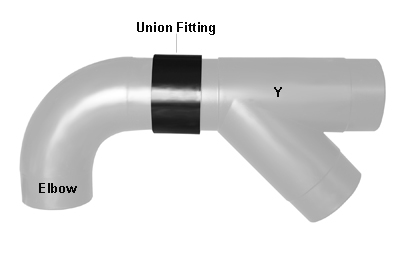

Union Fitting

Union Fitting

Use this 2-1/2" Union Fitting to connect two hard fitting together. Can be used with Y's, T's, Elbows and Splices.

Union Fitting
Note: Sample Use, fittings not included.



Item# Description Price Quantity
485 2-1/2" Union Fitting $3.99
422 4" Union Fitting $4.99

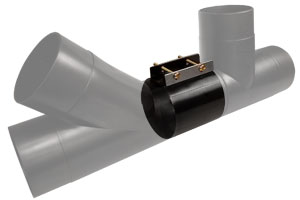

Steel Coupler

Steel Coupler

Trying to connect two fittings together can sometimes be frustrating. The Fulton Coupler rids you of this frustration by allowing you to easily connect two of your fitting it unique design. For example the coupler will allow you to join a "y" fitting to an elbow, or even a :T" It also allows you to join PVC parts with gluing. Steel construction makes the joint rigid once the coupler is connected.

Steel Coupler
sample
Note: Sample Use, fittings not included.
Item# Description Price Quantity
536 2-1/2" Steel Coupler $6.99
537 4" Steel Coupler $8.99

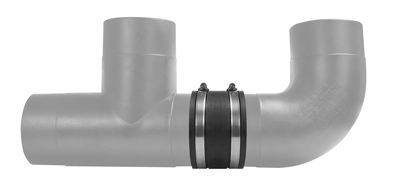

Rubber Union Fitting

Rubber Union Fitting

Use this 2-1/2" & 4" Rubber Union Fitting to connect two hard fitting together. All fitting are not always the same diameter and sometimes they do not fit together with a normal hard plastic union fitting. The Rubber Union Fitting Can be stretched to fit those off sized fittings. Can used with Y's, T's, Elbows and Splices.

Rubber Union Fitting sample
Note: Sample Use, fittings not included.
Item# Description Price Quantity
540 2-1/2" Rubber Union Fitting $7.99
541 4" Rubber Union Fitting $9.99
